Singularity

Singularity is what I named my homelab/media server. When I built it, I wanted to most cost effective solution. I was a student and didn’t have a lot of money to spend on this. The main thing I wanted was automatic downloading of my media, and play it on the tv. I have used Kodi in the past on a Raspberry Pi 2b+, so I picked up a Raspberry Pi 4. For the OS I choose LibreELEC and I had an old 2 TB hard drive I could use for storage. The 2B+ ended up as a pi-hole .

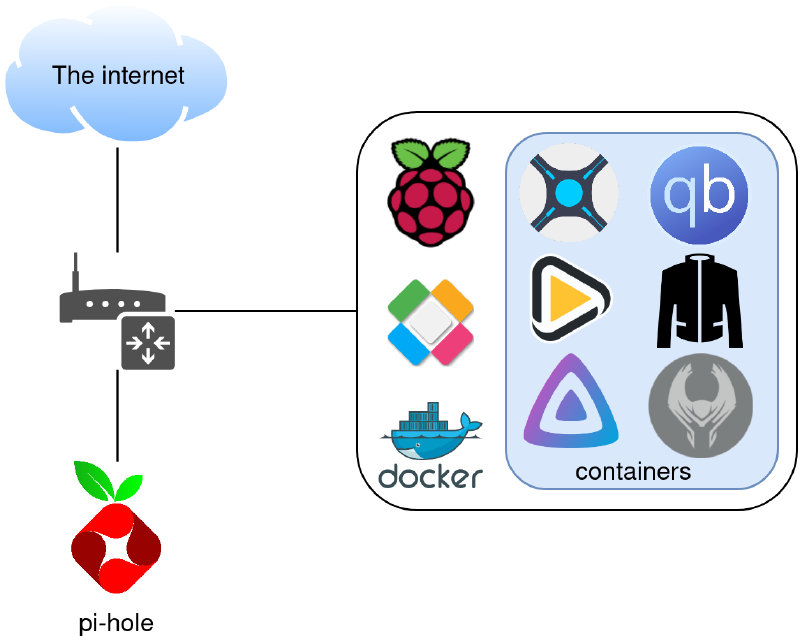

Singularity V1 diagram

I installed the Docker addon from the LibreELEC addon repository. I wanted to use docker-compose to do the orchestration of the containers, but installing that was a major pain. LibreELEC is such a stripped down OS that it doesn’t have all the requirements. In the end running docker-compose in a container did the trick. I used the containers made by the people over at linuxserver.io . I had to run the containers with PUID=0 and GUID=0 because LibreELEC runs everything as root.

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73


version: '2'
services:
    radarr:
        image: linuxserver/radarr:latest
        container_name: radarr
        environment:
            - PUID=0
            - PGID=0
        volumes:
            - /storage/docker-config/radarr:/config
            - /media/movies/movies:/movies
            - /media/series/downloads:/downloads
        restart: unless-stopped

    sonarr:
        image: linuxserver/sonarr:latest
        container_name: sonarr
        environment:
            - PGID=0
            - PUID=0
        volumes:
            - /storage/docker-config/sonarr:/config
            - /media/series/series:/tv
            - /media/series/downloads:/downloads
        restart: unless-stopped

    jellyfin:
        image: linuxserver/jellyfin:latest
        container_name: jellyfin
        environment:
            - PUID=0
            - PGID=0
        volumes:
            - /storage/docker-config/jellyfin:/config
            - /media/series/series:/data/tvshows
            - /media/movies/movies:/data/movies
        ports:
            - "8096:8096"
        restart: unless-stopped

    jackett:
        image: linuxserver/jackett:latest
        container_name: jackett
        volumes:
            - /storage/docker-config/jackett:/config
        ports:
            - "9117:9117"
        restart: unless-stopped

    heimdall:
        image: linuxserver/heimdall:latest
        container_name: heimdall
        volumes:
            - /storage/docker-config/heimdall:/config
        ports:
            - "8181:80"
        restart: unless-stopped

    qbittorrent:
        image: linuxserver/qbittorrent:latest
        container_name: qbittorrent
        environment:
            - PGID=0
            - PUID=0
            - WEBUI_PORT=8282
        volumes:
            - /storage/docker-config/qbittorrent:/config
            - /media/series/downloads:/downloads
        ports:
            - "8282:8282"
            - "6881:6881"
            - "6881:6881/udp"
        restart: unless-stopped
